lyra.abstract_domains.assumption package

Submodules

Alphabet Abstract Domain

Non-relational abstract domain to be used for input data assumption analysis. The set of possible string values of a program variable in a program state is represented by the sets of characters that must and may form the string.

Authors:Radwa Sherif Abdelbar and Caterina Urban
class lyra.abstract_domains.assumption.alphabet_domain.AlphabetLattice(certainly: typing.Set[str] = set(), maybe: typing.Set[str] = {‘&’, ‘8’, , , ’$’, ’n’, ‘5’, ’V’, ’o’, ’x’, ’#’, ’s’, ’}’, ’Q’, ’)’, ‘1’, ’M’, ’X’, ’b’, ’I’, ’.’, ’F’, ’h’, ’W’, ’-‘, ’H’, ’T’, ’l’, ’?’, ’_’, ”’”, ‘9’, ’j’, ‘7’, ’O’, ’<’, ’(‘, ’p’, ’{‘, ’x0b’, ’e’, ’R’, ’`’, ’C’, ’D’, ’k’, ’]’, ’f’, ’t’, ’E’, ’q’, ’”’, ‘2’, ’i’, ’=’, ’~’, ’B’, ’|’, ‘4’, ‘0’, ‘3’, ’m’, ’d’, ’L’, ’c’, ’%’, ’P’, ’@’, ’a’, ’U’, ’[‘, ’g’, ’S’, ’r’, ’A’, ’ ‘, ’v’, ’N’, ’n’, ’+’, ’^’, ’', ’r’, ’Z’, ’*’, ’/’, ’w’, ’G’, ’t’, ’!’, ’J’, ’z’, ’>’, ’y’, ‘6’, ’Y’, ’;’, ’u’, ’K’, ’:’, ’x0c’})[source]

Bases: lyra.abstract_domains.string.character_domain.CharacterLattice, lyra.abstract_domains.assumption.assumption_domain.JSONMixin

Alphabet lattice.

The default abstraction is the unconstraining pair (∅, Σ), where Σ denotes the entire alphabet. The bottom element of the lattice represents a contradiction.

_less_equal(other: lyra.abstract_domains.string.character_domain.CharacterLattice) → bool

Partial order between default lattice elements.

Parameters:other – other lattice element
Returns:whether the current lattice element is less than or equal to the other element

(c1, m1) (c2, m2) if and only if c2 c1 and m1 m2.

_meet(other: lyra.abstract_domains.string.character_domain.CharacterLattice)

Greatest lower bound between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the greatest lower bound

(c1, m1) (c2, m2) = (c1 c2, m1 m2).

_join(other: lyra.abstract_domains.string.character_domain.CharacterLattice) → lyra.abstract_domains.string.character_domain.CharacterLattice

Least upper bound between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the least upper bound

(c1, m1) (c2, m2) = (c1 c2, m1 m2).

_widening(other: lyra.abstract_domains.string.character_domain.CharacterLattice)

Widening between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the widening

(c1, m1) (c2, m2) = (c1, m1) (c2, m2).

_concat(other: lyra.abstract_domains.string.character_domain.CharacterLattice) → lyra.abstract_domains.string.character_domain.CharacterLattice

Concatenation between two lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the concatenation

(c1, m1) + (c2, m2) = (c1 c2, m1 m2).

static from_json(json: dict) → lyra.abstract_domains.assumption.assumption_domain.JSONMixin[source]

Reconstruct a lattice element from its JSON format.

Parameters:json – JSON format of a lattice element
Returns:reconstructed lattice element from its JSON format
to_json() → dict[source]

Convert the current lattice element to JSON format.

Returns:JSON format of the current lattice element
class lyra.abstract_domains.assumption.alphabet_domain.AlphabetState(variables: typing.Set[lyra.core.expressions.VariableIdentifier], precursory: lyra.abstract_domains.assumption.assumption_domain.InputMixin = None)[source]

Bases: lyra.abstract_domains.string.character_domain.CharacterState, lyra.abstract_domains.assumption.assumption_domain.InputMixin

Alphabet analysis state. An element of the alphabet abstract domain.

Map from each program variable to the sets of characters that must and may form its possible string values. The string value of all program variables is unconstrained by default.

When reading input data, the corresponding range assumptions are stored in the class member inputs, which is a map from each program point to the list of range assumptions on the input data read at that point.

_assume(condition: lyra.core.expressions.Expression) → lyra.abstract_domains.state.State

Assume that some condition holds in the current state.

Warning

The current state could also be bottom or top.

Parameters:condition – expression representing the assumed condition
Returns:current state modified to satisfy the assumption
_substitute(left: lyra.core.expressions.Expression, right: lyra.core.expressions.Expression)

Substitute an expression to another expression.

Warning

The current state could also be bottom or top.

Parameters:
  • left – expression to be substituted
  • right – expression to substitute
Returns:

current state modified by the substitution

class ExpressionRefinement[source]

Bases: lyra.abstract_domains.string.character_domain.ExpressionRefinement

visit_Input(expr, evaluation=None, value=None, state=None)[source]

Visit of an input call expression.

replace(variable: lyra.core.expressions.VariableIdentifier, expression: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.alphabet_domain.AlphabetState[source]
unify(other: lyra.abstract_domains.assumption.alphabet_domain.AlphabetState) → lyra.abstract_domains.assumption.alphabet_domain.AlphabetState[source]

Assumption Abstract Domains

Abstract domains to be used for input data assumption analysis.

Authors:Caterina Urban and Radwa Sherif Abdelbar
class lyra.abstract_domains.assumption.assumption_domain.AssumptionState(states: typing.List[typing.Type[lyra.abstract_domains.assumption.assumption_domain.InputMixin]], arguments: typing.Dict[typing.Type, typing.Dict[str, typing.Any]] = defaultdict(<function AssumptionState.<lambda>>, {}), precursory: lyra.abstract_domains.state.State = None)[source]

Bases: lyra.abstract_domains.state.State

Assumption analysis state. An element of the assumption abstract domain.

Reduced product of a list of constraining states, which collect constraints on the program variables and (indirectly) on the input data, and a stack of assumptions on the input data, which (directly) constraints the input data read from the current program point.

_assume(condition: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState[source]

Assume that some condition holds in the current state.

Warning

The current state could also be bottom or top.

Parameters:condition – expression representing the assumed condition
Returns:current state modified to satisfy the assumption
_substitute(left: lyra.core.expressions.Expression, right: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState[source]

Substitute an expression to another expression.

Warning

The current state could also be bottom or top.

Parameters:
  • left – expression to be substituted
  • right – expression to substitute
Returns:

current state modified by the substitution

class InputStack(precursory: lyra.abstract_domains.state.State = None)[source]

Bases: lyra.abstract_domains.stack.Stack, lyra.abstract_domains.state.State

Stack of assumptions on the input data.

class InputLattice(multiplier: lyra.core.expressions.Expression = <lyra.core.expressions.Literal object>, constraints: typing.List[typing.Union[typing.Tuple[lyra.core.statements.ProgramPoint, …], typing.Tuple[lyra.core.statements.ProgramPoint, typing.Tuple[lyra.abstract_domains.assumption.assumption_domain.JSONMixin, …]], _ForwardRef(‘AssumptionState.InputStack.InputLattice’)]] = [])[source]

Bases: lyra.abstract_domains.lattice.BottomMixin

Assumptions on the input data.

Each assumption is a (possibly symbolic) repetition of constraints on the input data. A constraint can be:

  • a basic constraint, i.e., a tuple of lattices (l, …) which indicates that an input data point is expected and restricts its possible value
  • a star constraint, i.e., ★ which indicates that any number of input data points is expected
  • another symbolically repeated assumption

Let S be the set of all possible sequences of input data points. The concretization function Ɣ: InputLattice -> 𝒫(S) is defined as follows:

Ɣ(1 * [★]) = S
...
Ɣ(1 * [(l1, l2), ★]) = { xs ∈ S | x ∈ Ɣ(l1) ⋂ Ɣ(l2) }
...
Ɣ(n * [(l1, l2)]) = { x^n ∈ S | x ∈ Ɣ(l1) ⋂ Ɣ(l2) }
...
Ɣ(1 * [(l1, l2)]) = { x ∈ S | x ∈ Ɣ(l1) ⋂ Ɣ(l2) }
...
Ɣ(1 * []) = { ε }
BasicConstraint

alias of Tuple

InputConstraint = typing.Union[typing.Tuple[lyra.core.statements.ProgramPoint, …], typing.Tuple[lyra.core.statements.ProgramPoint, typing.Tuple[lyra.abstract_domains.assumption.assumption_domain.JSONMixin, …]], _ForwardRef(‘AssumptionState.InputStack.InputLattice’)]
InputLattice = ‘AssumptionState.InputStack.InputLattice’
StarConstraint

alias of Tuple

constraints

Current list of constraints.

is_top() → bool[source]

Test whether the lattice element is top.

Returns:whether the lattice element is top
multiplier

Current multiplier.

record(constraint: typing.Union[typing.Tuple[lyra.core.statements.ProgramPoint, …], typing.Tuple[lyra.core.statements.ProgramPoint, typing.Tuple[lyra.abstract_domains.assumption.assumption_domain.JSONMixin, …]], _ForwardRef(‘AssumptionState.InputStack.InputLattice’)]) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState.InputStack.InputLattice[source]

Record a constraint on the input data.

By default, the constraint is added to the current list of recorded constraints.

When leaving the body of a for loop another time than the first, the constraint to be recorded is instead merged with the previously recorded constraint.

Parameters:constraint – constraint to be recorded
Returns:current lattice element modified to record the constraint
repeat(multiplier: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState.InputStack.InputLattice[source]

Repeat the current assumption on the input data.

Parameters:multiplier – repetitions to be performed
Returns:current lattice element modified to repeat the assumption
replace(variable: lyra.core.expressions.VariableIdentifier, expression: lyra.core.expressions.Expression)[source]

Replace a variable with an expression.

Parameters:
  • variable – variable to be replaced
  • expression – expression replacing the variable
Returns:

current lattice element modified to manifest the replacement

top()[source]

Top lattice element.

Returns:current lattice element modified to be the top lattice element

The top lattice element is 1 * [★].

class InputReplacement(pp: lyra.core.statements.ProgramPoint)[source]

Bases: lyra.core.expressions.ExpressionVisitor

Visitor that replaces any occurrence of an input (sub)expression with a fresh variable identifier that depends on a given program point.

Example:

input() - 3 * input()

given the program point [line:L, column:C] becomes:

L.1 - 3 * L.2
nonce
pp
visit_AttributeReference(expr: lyra.core.expressions.AttributeReference)[source]

Visit of an attribute reference.

visit_BinaryArithmeticOperation(expr: lyra.core.expressions.BinaryArithmeticOperation)[source]

Visit of a binary arithmetic operation.

visit_BinaryBooleanOperation(expr: lyra.core.expressions.BinaryBooleanOperation)[source]

Visit of a binary boolean operation.

visit_BinaryComparisonOperation(expr: lyra.core.expressions.BinaryComparisonOperation)[source]

Visit of a binary comparison operation.

visit_BinarySequenceOperation(expr: lyra.core.expressions.BinarySequenceOperation)[source]

Visit of a binary sequence operation.

visit_DictDisplay(expr: lyra.core.expressions.DictDisplay)[source]

Visit of dictionary display.

visit_Input(expr: lyra.core.expressions.Input)[source]

Visit of an input call expression.

visit_LengthIdentifier(expr: lyra.core.expressions.LengthIdentifier)[source]

Visit of a sequence or collection length.

visit_ListDisplay(expr: lyra.core.expressions.ListDisplay)[source]

Visit of a list display.

visit_Literal(expr: lyra.core.expressions.Literal)[source]

Visit of a literal expression.

visit_Range(expr: lyra.core.expressions.Range)[source]

Visit of a range call expression.

visit_SetDisplay(expr: lyra.core.expressions.SetDisplay)[source]

Visit of a set display.

visit_Slicing(expr: lyra.core.expressions.Slicing)[source]

Visit of a slicing expression.

visit_Subscription(expr: lyra.core.expressions.Subscription)[source]

Visit of a subscription expression.

visit_TupleDisplay(expr: lyra.core.expressions.TupleDisplay)[source]

Visit of a tuple display.

visit_UnaryArithmeticOperation(expr: lyra.core.expressions.UnaryArithmeticOperation)[source]

Visit of a unary arithmetic operation.

visit_UnaryBooleanOperation(expr: lyra.core.expressions.UnaryBooleanOperation)[source]

Visit of a unary boolean operation.

visit_VariableIdentifier(expr: lyra.core.expressions.VariableIdentifier)[source]

Visit of a variable identifier.

class Scope[source]

Bases: enum.Enum

Scope type. Either Branch or Loop.

Branch = 0
Loop = 1
enter_if() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState.InputStack[source]

Enter a conditional if statement.

Warning

The current state could also be bottom or top.

Returns:current state modified to enter a conditional if statement
enter_loop() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState.InputStack[source]

Enter a loop.

Warning

The current state could also be bottom or top.

Returns:current state modified to enter a loop
exit_if() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState.InputStack[source]

Exit a conditional if statement.

Warning

The current state could also be bottom or top.

Returns:current state modified to enter a conditional if statement
exit_loop() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState.InputStack[source]

Exit a loop.

Warning

The current state could also be bottom or top.

Returns:current state modified to exit a loop
pop() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState.InputStack[source]

Pop an element from the current stack.

push() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState.InputStack[source]

Push an element on the current stack.

record(constraint: typing.Union[typing.Tuple[lyra.core.statements.ProgramPoint, …], typing.Tuple[lyra.core.statements.ProgramPoint, typing.Tuple[lyra.abstract_domains.assumption.assumption_domain.JSONMixin, …]], _ForwardRef(‘AssumptionState.InputStack.InputLattice’)]) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState.InputStack[source]

Record a constraint on the input data.

Parameters:constraint – constraint to be recorded
Returns:current stack modified to record the constraint
scope

Current scope type.

scopes

Current stack of scope types.

before(pp: lyra.core.statements.ProgramPoint, precursory: typing.Union[_ForwardRef(‘State’), NoneType]) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState[source]

Set the program point of the currently analyzed statement and the current precursory analysis state.

Parameters:
  • pp – current program point
  • precursory – current precursory analysis state
Returns:

current state modified to set the current program point and precursory state

bottom() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState[source]

Bottom lattice element.

Returns:current lattice element modified to be the bottom lattice element
enter_if() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState[source]

Enter a conditional if statement.

Warning

The current state could also be bottom or top.

Returns:current state modified to enter a conditional if statement
enter_loop() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState[source]

Enter a loop.

Warning

The current state could also be bottom or top.

Returns:current state modified to enter a loop
exit_if() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState[source]

Exit a conditional if statement.

Warning

The current state could also be bottom or top.

Returns:current state modified to enter a conditional if statement
exit_loop() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState[source]

Exit a loop.

Warning

The current state could also be bottom or top.

Returns:current state modified to exit a loop
is_bottom() → bool[source]

Test whether the lattice element is bottom.

Returns:whether the lattice element is bottom
is_top() → bool[source]

Test whether the lattice element is top.

Returns:whether the lattice element is top
stack

Current stack of assumptions on the input data.

states

Current list of constraining states.

top() → lyra.abstract_domains.assumption.assumption_domain.AssumptionState[source]

Top lattice element.

Returns:current lattice element modified to be the top lattice element
class lyra.abstract_domains.assumption.assumption_domain.InputMixin(precursory: lyra.abstract_domains.state.State = None)[source]

Bases: lyra.abstract_domains.state.State

Mixin to add a mechanism for recording and retrieving constraints on the input data.

Constraints are recorded in the class member inputs, which is a map from each program point to the list of constraints on the input data read at that point.

join(other: lyra.abstract_domains.assumption.assumption_domain.InputMixin)[source]

Least upper bound between lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the least upper bound
less_equal(other: lyra.abstract_domains.assumption.assumption_domain.InputMixin)[source]

Partial order between lattice elements.

Parameters:other – other lattice element
Returns:whether the current lattice element is less than or equal to the other element
meet(other: lyra.abstract_domains.assumption.assumption_domain.InputMixin)[source]

Least upper bound between lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the least upper bound
record(constraint: lyra.abstract_domains.assumption.assumption_domain.JSONMixin) → lyra.abstract_domains.assumption.assumption_domain.InputMixin[source]

Record an constraint.

Parameters:constraint – constraint to be recorded
Returns:current state modified to record the constraint
replace(variable: lyra.core.expressions.VariableIdentifier, expression: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.InputMixin[source]

Replace a variable with an expression.

Note

The new variables appearing in the replacing expression are added to the current state.

Parameters:
  • variable – variable to be replaced
  • expression – expression replacing the variable
Returns:

current state modified to manifest the replacement

retrieve() → typing.List[lyra.abstract_domains.assumption.assumption_domain.JSONMixin][source]

Retrieve and forget the constraints corresponding to the current program point.

Warning

The current state is modified to forget the returned constraints.

Returns:the list of constraints corresponding to the current program point
unify(other: lyra.abstract_domains.assumption.assumption_domain.InputMixin) → lyra.abstract_domains.assumption.assumption_domain.InputMixin[source]

Unification of the environment of the current state with the environment of another state.

This is needed when new variables are introduced by replace() to represent input expressions. The unification should match variables in the order of the program points on which they depend.

Parameters:other – state whose environment we want to unify with
Returns:current state modified to reflect the unification
widening(other: lyra.abstract_domains.assumption.assumption_domain.InputMixin)[source]

Least upper bound between lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the least upper bound
class lyra.abstract_domains.assumption.assumption_domain.JSONMixin[source]

Bases: lyra.abstract_domains.lattice.Lattice

Mixin to add a mechanism for converting a lattice to and from JSON format.

static from_json(json: str) → lyra.abstract_domains.assumption.assumption_domain.JSONMixin[source]

Reconstruct a lattice element from its JSON format.

Parameters:json – JSON format of a lattice element
Returns:reconstructed lattice element from its JSON format
to_json() → str[source]

Convert the current lattice element to JSON format.

Returns:JSON format of the current lattice element
class lyra.abstract_domains.assumption.assumption_domain.TypeAlphabetAssumptionState(variables: typing.Set[lyra.core.expressions.VariableIdentifier], precursory: lyra.abstract_domains.state.State = None)[source]

Bases: lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Type+alphabet assumption analysis state.

Reduced product of type and string constraining states, and a stack of assumptions on the input data.

_assume(condition: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Assume that some condition holds in the current state.

Warning

The current state could also be bottom or top.

Parameters:condition – expression representing the assumed condition
Returns:current state modified to satisfy the assumption
_substitute(left: lyra.core.expressions.Expression, right: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Substitute an expression to another expression.

Warning

The current state could also be bottom or top.

Parameters:
  • left – expression to be substituted
  • right – expression to substitute
Returns:

current state modified by the substitution

class lyra.abstract_domains.assumption.assumption_domain.TypeQuantityAssumptionState(variables: typing.Set[lyra.core.expressions.VariableIdentifier], precursory: lyra.abstract_domains.state.State = None)[source]

Bases: lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Type+quantity assumption analysis state. An element of the type+quantity assumption abstract domain.

Reduced product of type and quantity constraining states, which respectively collect constraints on the type and sign of values of the program variables and (indirectly) on the input data, and a stack of assumptions on the input data, which (directly) constraints the input data read from the current program point.

_assume(condition: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Assume that some condition holds in the current state.

Warning

The current state could also be bottom or top.

Parameters:condition – expression representing the assumed condition
Returns:current state modified to satisfy the assumption
_substitute(left: lyra.core.expressions.Expression, right: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Substitute an expression to another expression.

Warning

The current state could also be bottom or top.

Parameters:
  • left – expression to be substituted
  • right – expression to substitute
Returns:

current state modified by the substitution

class lyra.abstract_domains.assumption.assumption_domain.TypeRangeAlphabetAssumptionState(variables: typing.Set[lyra.core.expressions.VariableIdentifier], precursory: lyra.abstract_domains.state.State = None)[source]

Bases: lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Type+range+alphabet assumption analysis state.

Reduced product of type, range, and string constraining states, and a stack of assumptions on the input data.

_assume(condition: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Assume that some condition holds in the current state.

Warning

The current state could also be bottom or top.

Parameters:condition – expression representing the assumed condition
Returns:current state modified to satisfy the assumption
_substitute(left: lyra.core.expressions.Expression, right: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Substitute an expression to another expression.

Warning

The current state could also be bottom or top.

Parameters:
  • left – expression to be substituted
  • right – expression to substitute
Returns:

current state modified by the substitution

class lyra.abstract_domains.assumption.assumption_domain.TypeRangeAssumptionState(variables: typing.Set[lyra.core.expressions.VariableIdentifier], precursory: lyra.abstract_domains.state.State = None)[source]

Bases: lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Type+range assumption analysis state. An element of the type+range assumption abstract domain.

Reduced product of type and range constraining states, which respectively collect constraints on the type and range of values of the program variables and (indirectly) on the input data, and a stack of assumptions on the input data, which (directly) constraints the input data read from the current program point.

_assume(condition: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Assume that some condition holds in the current state.

Warning

The current state could also be bottom or top.

Parameters:condition – expression representing the assumed condition
Returns:current state modified to satisfy the assumption
_substitute(left: lyra.core.expressions.Expression, right: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.assumption_domain.AssumptionState

Substitute an expression to another expression.

Warning

The current state could also be bottom or top.

Parameters:
  • left – expression to be substituted
  • right – expression to substitute
Returns:

current state modified by the substitution

Quantity Abstract Domain

Non-relational abstract domain to be used for input data assumptions analysis. The set of possible values of a program variables in a program state is represented by their sign (negative, zero, positive, …)

Authors:Caterina Urban
class lyra.abstract_domains.assumption.quantity_domain.QuantityLattice(negative=True, zero=True, positive=True)[source]

Bases: lyra.abstract_domains.numerical.sign_domain.SignLattice, lyra.abstract_domains.assumption.assumption_domain.JSONMixin

Quantity lattice.

_images/sign.png
_less_equal(other: lyra.abstract_domains.numerical.sign_domain.SignLattice) → bool

Partial order between default lattice elements.

Parameters:other – other lattice element
Returns:whether the current lattice element is less than or equal to the other element
_meet(other: lyra.abstract_domains.numerical.sign_domain.SignLattice) → lyra.abstract_domains.numerical.sign_domain.SignLattice

Greatest lower bound between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the greatest lower bound
_join(other: lyra.abstract_domains.numerical.sign_domain.SignLattice) → lyra.abstract_domains.numerical.sign_domain.SignLattice

Least upper bound between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the least upper bound
_widening(other: lyra.abstract_domains.numerical.sign_domain.SignLattice) → lyra.abstract_domains.numerical.sign_domain.SignLattice

Widening between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the widening
_neg() → lyra.abstract_domains.numerical.sign_domain.SignLattice

Negation of a default lattice elements.

Returns:current lattice element modified to be its negation
_add(other: lyra.abstract_domains.numerical.sign_domain.SignLattice) → lyra.abstract_domains.numerical.sign_domain.SignLattice
_sub(other: lyra.abstract_domains.numerical.sign_domain.SignLattice) → lyra.abstract_domains.numerical.sign_domain.SignLattice
_mult(other: lyra.abstract_domains.numerical.sign_domain.SignLattice) → lyra.abstract_domains.numerical.sign_domain.SignLattice
static from_json(json: str) → lyra.abstract_domains.assumption.assumption_domain.JSONMixin[source]

Reconstruct a lattice element from its JSON format.

Parameters:json – JSON format of a lattice element
Returns:reconstructed lattice element from its JSON format
to_json() → str[source]

Convert the current lattice element to JSON format.

Returns:JSON format of the current lattice element
class lyra.abstract_domains.assumption.quantity_domain.QuantityState(variables: typing.Set[lyra.core.expressions.VariableIdentifier], precursory: lyra.abstract_domains.assumption.assumption_domain.InputMixin = None)[source]

Bases: lyra.abstract_domains.numerical.sign_domain.SignState, lyra.abstract_domains.assumption.assumption_domain.InputMixin

Quantity assumption analysis state. An element of the quantity assumption abstract domain.

Map from each program variable to the sign representing its value.

When reading input data, the corresponding quantity assumptions are stored in the class member inputs, which is a map from each program point to the list of quantity assumptions on the input data read at that point.

_assume(condition: lyra.core.expressions.Expression) → lyra.abstract_domains.numerical.sign_domain.SignState

Assume that some condition holds in the current state.

Warning

The current state could also be bottom or top.

Parameters:condition – expression representing the assumed condition
Returns:current state modified to satisfy the assumption
_substitute(left: lyra.core.expressions.Expression, right: lyra.core.expressions.Expression)

Substitute an expression to another expression.

Warning

The current state could also be bottom or top.

Parameters:
  • left – expression to be substituted
  • right – expression to substitute
Returns:

current state modified by the substitution

class ExpressionRefinement[source]

Bases: lyra.abstract_domains.basis.ExpressionRefinement

visit_BinaryArithmeticOperation(expr, evaluation=None, value=None, state=None)[source]

Visit of a binary arithmetic operation.

visit_Input(expr: lyra.core.expressions.Input, evaluation=None, value=None, state=None)[source]

Visit of an input call expression.

replace(variable: lyra.core.expressions.VariableIdentifier, expression: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.quantity_domain.QuantityState[source]

Replace a variable with an expression.

Note

The new variables appearing in the replacing expression are added to the current state.

Parameters:
  • variable – variable to be replaced
  • expression – expression replacing the variable
Returns:

current state modified to manifest the replacement

unify(other: lyra.abstract_domains.assumption.quantity_domain.QuantityState) → lyra.abstract_domains.assumption.quantity_domain.QuantityState[source]

Unification of the environment of the current state with the environment of another state.

This is needed when new variables are introduced by replace() to represent input expressions. The unification should match variables in the order of the program points on which they depend.

Parameters:other – state whose environment we want to unify with
Returns:current state modified to reflect the unification

Range Abstract Domain

Non-relational abstract domain to be used for input data assumption analysis. The set of possible values of a program variable in a program state is represented by a value range.

Authors:Caterina Urban and Madelin Schumacher
class lyra.abstract_domains.assumption.range_domain.RangeLattice(lower=-inf, upper=inf)[source]

Bases: lyra.abstract_domains.numerical.interval_domain.IntervalLattice, lyra.abstract_domains.assumption.assumption_domain.JSONMixin

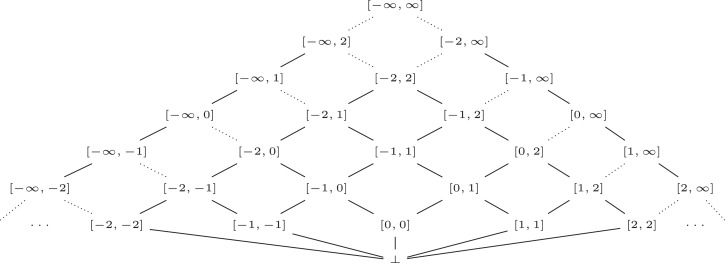

Range lattice. The bottom range represents an empty set of values.

_images/interval.jpg

The default abstraction is the unbounded range [-oo, +oo].

_less_equal(other: lyra.abstract_domains.numerical.interval_domain.IntervalLattice) → bool

Partial order between default lattice elements.

Parameters:other – other lattice element
Returns:whether the current lattice element is less than or equal to the other element

[a, b] [c, d] if and only if c <= a and b <= d.

_meet(other: lyra.abstract_domains.numerical.interval_domain.IntervalLattice) → lyra.abstract_domains.numerical.interval_domain.IntervalLattice

Greatest lower bound between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the greatest lower bound

[a, b] [c, d] = [max(a,c), min(b,d)].

_join(other: lyra.abstract_domains.numerical.interval_domain.IntervalLattice) → lyra.abstract_domains.numerical.interval_domain.IntervalLattice

Least upper bound between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the least upper bound

[a, b] [c, d] = [min(a,c), max(b,d)].

_widening(other: lyra.abstract_domains.numerical.interval_domain.IntervalLattice) → lyra.abstract_domains.numerical.interval_domain.IntervalLattice

Widening between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the widening

[a, b] [c, d] = [(c < a ? -oo : a), (b < d ? +oo : b)].

_neg() → lyra.abstract_domains.numerical.interval_domain.IntervalLattice

Negation of a default lattice elements.

Returns:current lattice element modified to be its negation

- [a, b] = [-b, -a].

_add(other: lyra.abstract_domains.numerical.interval_domain.IntervalLattice) → lyra.abstract_domains.numerical.interval_domain.IntervalLattice

Addition between two default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the sum

[a, b] + [c, d] = [a + c, b + d].

_sub(other: lyra.abstract_domains.numerical.interval_domain.IntervalLattice) → lyra.abstract_domains.numerical.interval_domain.IntervalLattice

Subtraction between two default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the difference

[a, b] - [c, d] = [a - d, b - c].

_mult(other: lyra.abstract_domains.numerical.interval_domain.IntervalLattice) → lyra.abstract_domains.numerical.interval_domain.IntervalLattice

Multiplication between two default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the product

[a, b] * [c, d] = [min(a*c, a*d, b*c, b*d), max(a*c, a*d, b*c, b*d)].

static from_json(json: str) → lyra.abstract_domains.assumption.assumption_domain.JSONMixin[source]

Reconstruct a lattice element from its JSON format.

Parameters:json – JSON format of a lattice element
Returns:reconstructed lattice element from its JSON format
to_json() → str[source]

Convert the current lattice element to JSON format.

Returns:JSON format of the current lattice element
class lyra.abstract_domains.assumption.range_domain.RangeState(variables: typing.Set[lyra.core.expressions.VariableIdentifier], precursory: lyra.abstract_domains.assumption.assumption_domain.InputMixin = None)[source]

Bases: lyra.abstract_domains.numerical.interval_domain.IntervalState, lyra.abstract_domains.assumption.assumption_domain.InputMixin

Range assumption analysis state. An element of the range assumption abstract domain.

Map from each program variable to the value range representing its value. The value of all program variables is represented by the unbounded range by default.

When reading input data, the corresponding range assumptions are stored in the class member inputs, which is a map from each program point to the list of range assumptions on the input data read at that point.

_assume(condition: lyra.core.expressions.Expression) → lyra.abstract_domains.numerical.interval_domain.IntervalState

Assume that some condition holds in the current state.

Warning

The current state could also be bottom or top.

Parameters:condition – expression representing the assumed condition
Returns:current state modified to satisfy the assumption
_substitute(left: lyra.core.expressions.Expression, right: lyra.core.expressions.Expression)

Substitute an expression to another expression.

Warning

The current state could also be bottom or top.

Parameters:
  • left – expression to be substituted
  • right – expression to substitute
Returns:

current state modified by the substitution

class ExpressionRefinement[source]

Bases: lyra.abstract_domains.basis.ExpressionRefinement

visit_Input(expr: lyra.core.expressions.Input, evaluation=None, value=None, state=None)[source]

Visit of an input call expression.

replace(variable: lyra.core.expressions.VariableIdentifier, expression: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.range_domain.RangeState[source]

Replace a variable with an expression.

Note

The new variables appearing in the replacing expression are added to the current state.

Parameters:
  • variable – variable to be replaced
  • expression – expression replacing the variable
Returns:

current state modified to manifest the replacement

unify(other: lyra.abstract_domains.assumption.range_domain.RangeState) → lyra.abstract_domains.assumption.range_domain.RangeState[source]

Unification of the environment of the current state with the environment of another state.

This is needed when new variables are introduced by replace() to represent input expressions. The unification should match variables in the order of the program points on which they depend.

Parameters:other – state whose environment we want to unify with
Returns:current state modified to reflect the unification

Type Abstract Domain

Non-relational abstract domain to be used for input data assumption analysis. The set of possible values of a program variable in a state is represented as a type.

Authors:Caterina Urban and Madelin Schumacher
class lyra.abstract_domains.assumption.type_domain.TypeLattice(type_status: lyra.abstract_domains.assumption.type_domain.TypeLattice.Status = <Status.String: 3>)[source]

Bases: lyra.abstract_domains.lattice.BottomMixin, lyra.abstract_domains.lattice.ArithmeticMixin, lyra.abstract_domains.assumption.assumption_domain.JSONMixin

Type Lattice:

String
  |
Float
  |
Integer
  |
Boolean
  |
  ⊥

The default lattice element is String.

Let S be the set of all possible strings. We define F ⊆ S, I ⊆ F, B ⊆ I to be the sets of all possible strings that can be interpreted as floating-point numbers (i.e., F = { 2.35, …, 9.345, …}), integers (i.e., I = { -3, …, 15, …}), and booleans (i.e., B = { 0, 1 }), respectively. The concretization function Ɣ: TypeLattice -> 𝒫(S) is defined as follows:

Ɣ(String) = S
Ɣ(Float) = F
Ɣ(Integer) = I
Ɣ(Boolean) = B
Ɣ(⊥) = ∅

Note

One might want to have Ɣ(Boolean) = { ‘True’, ‘False’ }. This, however, would yield the following different lattice structure:

       String
     /        \
    /        Float
Boolean        |
     \      Integer
      \      /
          ⊥

which is not compatible with subtyping between boolean and integer types in Python.

_less_equal(other: lyra.abstract_domains.assumption.type_domain.TypeLattice) → bool[source]

Partial order between default lattice elements.

Parameters:other – other lattice element
Returns:whether the current lattice element is less than or equal to the other element
_meet(other: lyra.abstract_domains.assumption.type_domain.TypeLattice)[source]

Greatest lower bound between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the greatest lower bound
_join(other: lyra.abstract_domains.assumption.type_domain.TypeLattice) → lyra.abstract_domains.assumption.type_domain.TypeLattice[source]

Least upper bound between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the least upper bound
_widening(other: lyra.abstract_domains.assumption.type_domain.TypeLattice)[source]

Widening between default lattice elements.

Parameters:other – other lattice element
Returns:current lattice element modified to be the widening
class Status[source]

Bases: enum.IntEnum

Type status.

The current lattice element can be:

  • String: String type
  • Float: Float type
  • Integer Integer type
  • Boolean: Boolean type
Boolean = 0
Float = 2
Integer = 1
String = 3
boolean() → lyra.abstract_domains.assumption.type_domain.TypeLattice[source]

Integer lattice element.

Returns:current lattice element modified to be the boolean lattice element

The integer lattice element is Boolean

element

Current lattice element.

Returns:the current lattice element if the type is not bottom, None otherwise
float() → lyra.abstract_domains.assumption.type_domain.TypeLattice[source]

Float lattice element.

Returns:current lattice element modified to be the float lattice element

The float lattice element is Float.

static from_json(json: str) → lyra.abstract_domains.assumption.assumption_domain.JSONMixin[source]

Reconstruct a lattice element from its JSON format.

Parameters:json – JSON format of a lattice element
Returns:reconstructed lattice element from its JSON format
classmethod from_lyra_type(lyra_type: lyra.core.types.LyraType)[source]
integer() → lyra.abstract_domains.assumption.type_domain.TypeLattice[source]

Integer lattice element.

Returns:current lattice element modified to be the integer lattice element

The integer lattice element is Integer

is_boolean() → bool[source]

Test whether the lattice element is boolean.

Returns:whether the lattice element is Boolean
is_float() → bool[source]

Test whether the lattice element is float.

Returns:whether the lattice element is Float
is_integer() → bool[source]

Test whether the lattice element is integer.

Returns:whether the lattice element is Integer
is_top() → bool[source]

Test whether the lattice element is top.

Returns:whether the lattice element is top
to_json() → str[source]

Convert the current lattice element to JSON format.

Returns:JSON format of the current lattice element
top() → lyra.abstract_domains.assumption.type_domain.TypeLattice[source]

Top lattice element.

Returns:current lattice element modified to be the top lattice element

The top lattice element is String.

class lyra.abstract_domains.assumption.type_domain.TypeState(variables: typing.Set[lyra.core.expressions.VariableIdentifier], precursory: lyra.abstract_domains.state.State = None)[source]

Bases: lyra.abstract_domains.store.Store, lyra.abstract_domains.assumption.assumption_domain.InputMixin

Type assumption analysis state. An element of the type assumption abstract domain.

Map from each program variable to the type representing its value. The value of all program variables is represented by their Lyra type by default.

Note

This means that, for any map m: VariableIdentifier -> TypeLattice and variable x, we should always have m(x) ≤ TypeLattice.from_lyra_type(x.typ)

When reading input data, the corresponding type assumptions are stored in the class member inputs, which is a map from each program point to the list of type assumptions on the inputs read at that point.

_assume(condition: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.type_domain.TypeState[source]

Assume that some condition holds in the current state.

Warning

The current state could also be bottom or top.

Parameters:condition – expression representing the assumed condition
Returns:current state modified to satisfy the assumption
_substitute(left: lyra.core.expressions.Expression, right: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.type_domain.TypeState[source]

Substitute an expression to another expression.

Warning

The current state could also be bottom or top.

Parameters:
  • left – expression to be substituted
  • right – expression to substitute
Returns:

current state modified by the substitution

class ArithmeticExpressionRefinement[source]

Bases: lyra.core.expressions.ExpressionVisitor

Visitor that:

  1. refines the value of an evaluated arithmetic expression based on a given interval; and
  2. modifies the current state based on the refined value of the arithmetic expression.
visit(expr: lyra.core.expressions.Expression, *args, **kwargs)[source]

Visit of an evaluated expression.

visit_AttributeReference(expr, evaluation=None, value=None, state=None)[source]

Visit of an attribute reference.

visit_BinaryArithmeticOperation(expr, evaluation=None, value=None, state=None)[source]

Visit of a binary arithmetic operation.

visit_BinaryBooleanOperation(expr, evaluation=None, value=None, state=None)[source]

Visit of a binary boolean operation.

visit_BinaryComparisonOperation(expr, evaluation=None, value=None, state=None)[source]

Visit of a binary comparison operation.

visit_BinarySequenceOperation(expr, evaluation=None, value=None, state=None)[source]

Visit of a binary sequence operation.

visit_DictDisplay(expr: lyra.core.expressions.DictDisplay, state=None, evaluation=None)[source]

Visit of dictionary display.

visit_Input(expr: lyra.core.expressions.Input, evaluation=None, value=None, state=None)[source]

Visit of an input call expression.

visit_LengthIdentifier(expr, evaluation=None, value=None, state=None)[source]

Visit of a sequence or collection length.

visit_ListDisplay(expr: lyra.core.expressions.ListDisplay, evaluation=None, value=None, state=None)[source]

Visit of a list display.

visit_Literal(expr: lyra.core.expressions.Literal, evaluation=None, value=None, state=None)[source]

Visit of a literal expression.

visit_Range(expr: lyra.core.expressions.Range, state=None, evaluation=None)[source]

Visit of a range call expression.

visit_SetDisplay(expr: lyra.core.expressions.SetDisplay, state=None, evaluation=None)[source]

Visit of a set display.

visit_Slicing(expr: lyra.core.expressions.Slicing, evaluation=None, value=None, state=None)[source]

Visit of a slicing expression.

visit_Subscription(expr: lyra.core.expressions.Subscription, evaluation=None, value=None, state=None)[source]

Visit of a subscription expression.

visit_TupleDisplay(expr: lyra.core.expressions.TupleDisplay, state=None, evaluation=None)[source]

Visit of a tuple display.

visit_UnaryArithmeticOperation(expr, evaluation=None, value=None, state=None)[source]

Visit of a unary arithmetic operation.

visit_UnaryBooleanOperation(expr, evaluation=None, value=None, state=None)[source]

Visit of a unary boolean operation.

visit_VariableIdentifier(expr, evaluation=None, value=None, state=None)[source]

Visit of a variable identifier.

class ExpressionEvaluation[source]

Bases: lyra.core.expressions.ExpressionVisitor

Visitor that performs the evaluation of an expression in the type lattice.

visit_AttributeReference(expr: lyra.core.expressions.AttributeReference, state=None, evaluation=None)[source]

Visit of an attribute reference.

visit_BinaryArithmeticOperation(expr, state=None, evaluation=None)[source]

Visit of a binary arithmetic operation.

visit_BinaryBooleanOperation(expr, state=None, evaluation=None)[source]

Visit of a binary boolean operation.

visit_BinaryComparisonOperation(expr, state=None, evaluation=None)[source]

Visit of a binary comparison operation.

visit_BinarySequenceOperation(expr, state=None, evaluation=None)[source]

Visit of a binary sequence operation.

visit_DictDisplay(expr: lyra.core.expressions.DictDisplay, state=None, evaluation=None)[source]

Visit of dictionary display.

visit_Input(expr: lyra.core.expressions.Input, state=None, evaluation=None)[source]

Visit of an input call expression.

visit_LengthIdentifier(expr: lyra.core.expressions.LengthIdentifier, state=None, evaluation=None)[source]

Visit of a sequence or collection length.

visit_ListDisplay(expr: lyra.core.expressions.ListDisplay, state=None, evaluation=None)[source]

Visit of a list display.

visit_Literal(expr: lyra.core.expressions.Literal, state=None, evaluation=None)[source]

Visit of a literal expression.

visit_Range(expr: lyra.core.expressions.Range, state=None, evaluation=None)[source]

Visit of a range call expression.

visit_SetDisplay(expr: lyra.core.expressions.SetDisplay, state=None, evaluation=None)[source]

Visit of a set display.

visit_Slicing(expr: lyra.core.expressions.Slicing, state=None, evaluation=None)[source]

Visit of a slicing expression.

visit_Subscription(expr: lyra.core.expressions.Subscription, state=None, evaluation=None)[source]

Visit of a subscription expression.

visit_TupleDisplay(expr: lyra.core.expressions.TupleDisplay, state=None, evaluation=None)[source]

Visit of a tuple display.

visit_UnaryArithmeticOperation(expr, state=None, evaluation=None)[source]

Visit of a unary arithmetic operation.

visit_UnaryBooleanOperation(expr, state=None, evaluation=None)[source]

Visit of a unary boolean operation.

visit_VariableIdentifier(expr: lyra.core.expressions.VariableIdentifier, state=None, evaluation=None)[source]

Visit of a variable identifier.

enter_if() → lyra.abstract_domains.assumption.type_domain.TypeState[source]

Enter a conditional if statement.

Warning

The current state could also be bottom or top.

Returns:current state modified to enter a conditional if statement
enter_loop() → lyra.abstract_domains.assumption.type_domain.TypeState[source]

Enter a loop.

Warning

The current state could also be bottom or top.

Returns:current state modified to enter a loop
exit_if() → lyra.abstract_domains.assumption.type_domain.TypeState[source]

Exit a conditional if statement.

Warning

The current state could also be bottom or top.

Returns:current state modified to enter a conditional if statement
exit_loop() → lyra.abstract_domains.assumption.type_domain.TypeState[source]

Exit a loop.

Warning

The current state could also be bottom or top.

Returns:current state modified to exit a loop
replace(variable: lyra.core.expressions.VariableIdentifier, expression: lyra.core.expressions.Expression) → lyra.abstract_domains.assumption.type_domain.TypeState[source]

Replace a variable with an expression.

Note

The new variables appearing in the replacing expression are added to the current state.

Parameters:
  • variable – variable to be replaced
  • expression – expression replacing the variable
Returns:

current state modified to manifest the replacement

unify(other: lyra.abstract_domains.assumption.type_domain.TypeState) → lyra.abstract_domains.assumption.type_domain.TypeState[source]

Unification of the environment of the current state with the environment of another state.

This is needed when new variables are introduced by replace() to represent input expressions. The unification should match variables in the order of the program points on which they depend.

Parameters:other – state whose environment we want to unify with
Returns:current state modified to reflect the unification
